Loj & Siab ntsuas & Standard | |
Loj | DN40-DN1200 |
Kev ntsuas siab | PN10, PN16, CL150 |
Face to Face STD | BS5163, DIN3202 F4, API609 |
Kev sib txuas STD | BS 4504 PN6/PN10/PN16, DIN2501 PN6/PN10/PN16, ISO 7005 PN6/PN10/PN16, JIS 5K/10K/16K, ASME B16.1 125LB, ASME B16.1 AS 1502LB, |
Upper Flange STD | TS EN ISO 5211 |
Khoom siv | |
Lub cev | WCB/CF8M |
Disc | WCB/CF8M |
Stem / Ncej | 2Cr13 stainless hlau / CF8M |
Rooj | WCB + 2Cr13 stainless hlau / CF8M |
Bushing | PTFE, tooj |
O Nplhaib | NBR, EPDM, FKM |
Tus actuator | Iav Box, Fais Actuator, Pneumatic Actuator |
Kub | Kub: -20-425 ℃ |
GGG50 ductile hlau lub cev: yog ib qho ntawm cov khoom siv feem ntau, uas paub txog nws lub zog siab thiab tawv.
Stainless hlau lub rooj: zoo heev corrosion kuj ua rau nws haum rau siv nyob rau hauv ntau yam ib puag ncig, nrog rau corrosive ib puag ncig xws li tshuaj ua cov nroj tsuag, offshore installation thiab dej kho cov chaw.
Stainless hlau ntsaws ruaj ruaj muab lub foob kaw, suav nrog cov roj foob, uas txo qis kev pheej hmoo ntawm kev xau.

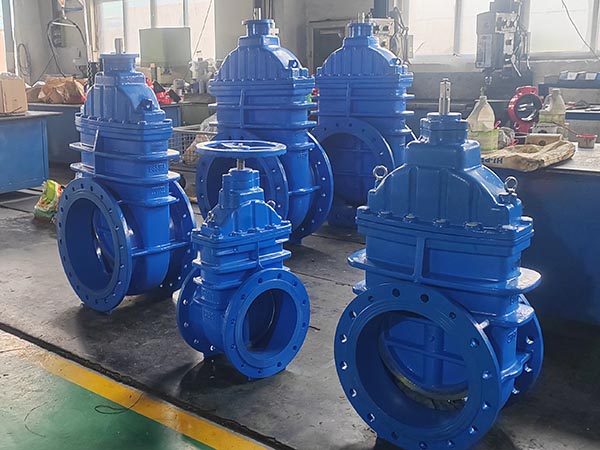

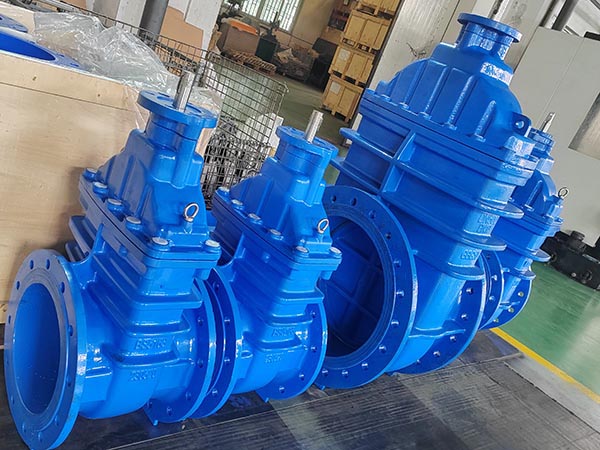

Piv nrog rau qhov nce qia rooj vag li qub, lub qhov rooj tsis muaj qhov nce siab nyob hauv thaj chaw me me thiab tsim nyog rau ib puag ncig uas muaj qhov chaw tsawg.
